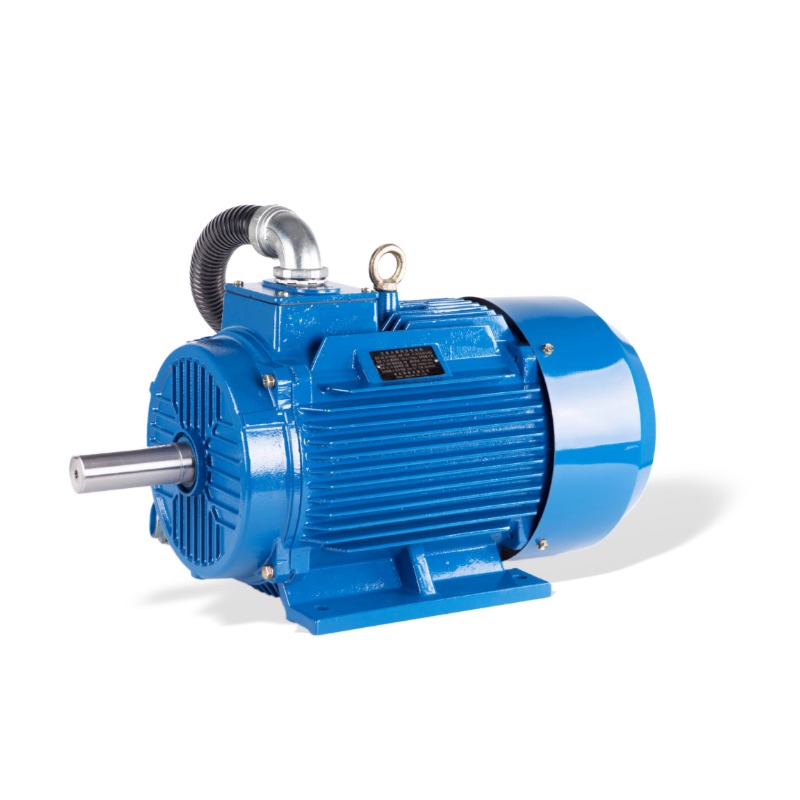

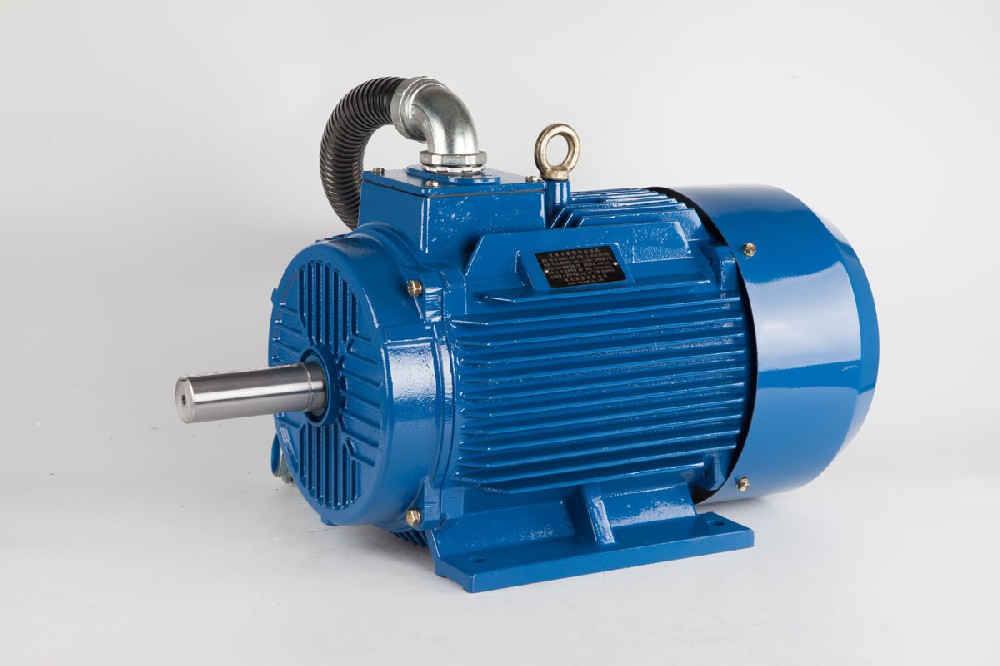

GYK節能永磁同步電機

GYK交流永磁同步電機

GYK series AC permanent magnet synchronous motor

機座號（Frame）: H112-H315mm

功率范圍（Power Range）:5.5KW-250KW

額定電壓（Rated voltage）: 380V

安裝方式（Installation mode）:B3/B35

絕緣等級（Class of insulation）: F

防護等級（Protection grade）: IP54

效率等級（Efficiency)：2級

特點說明：是專為螺桿空壓機而設計的一款超高效永磁同步電機，安裝尺寸、外形和三相異步電機一樣，采用了超高內稟矯頑力、耐高溫稀土永磁材料，抗弱磁能力強，幾乎在整個轉速范圍可以恒轉矩輸出。正弦波磁場設計，低速轉矩平穩，過載能力強，使用安全可靠。采用獨立的軸流風機冷卻，散熱效果好。獨特的引出線設計方式，可根據客戶要求定制引出線長度。

Characteristics：

This is a ultra high efficiency permanent magnet synchronous motor designed for screw air compressor, mounting dimensions and appearance are the same as three-phase induction motors.Adopted ultra high intrinsic coercivity, high temperature resistant rare earth permanent magnetic materials, it has a strong ability to anti weak magnetic, can almost be constant torque output in the whole speed range, with sine wave magnetic field design, smooth low speed torque, strong overload capacity, safe and reliable performance. Adopted independent axial flow fan to cool, the heat dissipation is excellent. With unique lead-out design, lead length can be customized according to customer’s requirement.
