FTYP 系列自啟動永磁同步電機

FTYP 自啟動永磁同步電機

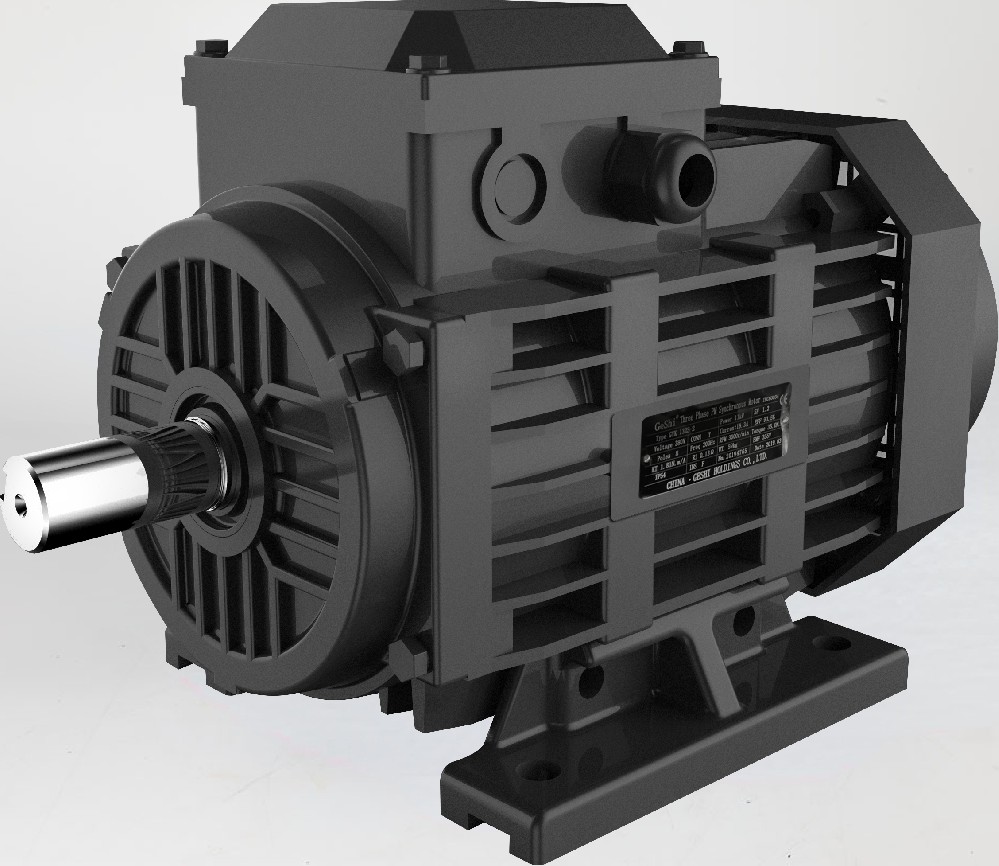

FTYP series self-starting permanent magnet synchronous motor

機座（Frame）: H80-H160

功率范圍（Power Range）: 0.55KW-15KW

安裝方式（Installation Mode）: B3/B5/B14

絕緣等級（Class of Insulation）: F/H

防護等級（Protection Grade）: IP54/IP55

效率等級（Efficiency)：IE4/IE5

特點說明：FTYP系列自啟動永磁同步電機不需要無功勵磁電流。功率因數高，減少了定子電流和電阻損耗，而且在穩定運行時沒有轉子銅耗，進而可以減少風扇相應的風摩損耗，從而使其效率比同規格感應電動機提高5%-10%。

Characteristics: FTYP series self-starting permanent magnet synchronous motors do not require reactive excitation current. The high power factor reduces the stator current and resistance loss, and there is no rotor copper consumption during stable operation, which can reduce the corresponding wind friction loss of the fan, so that its efficiency is 5%-10% higher than that of the same specification induction motor.
