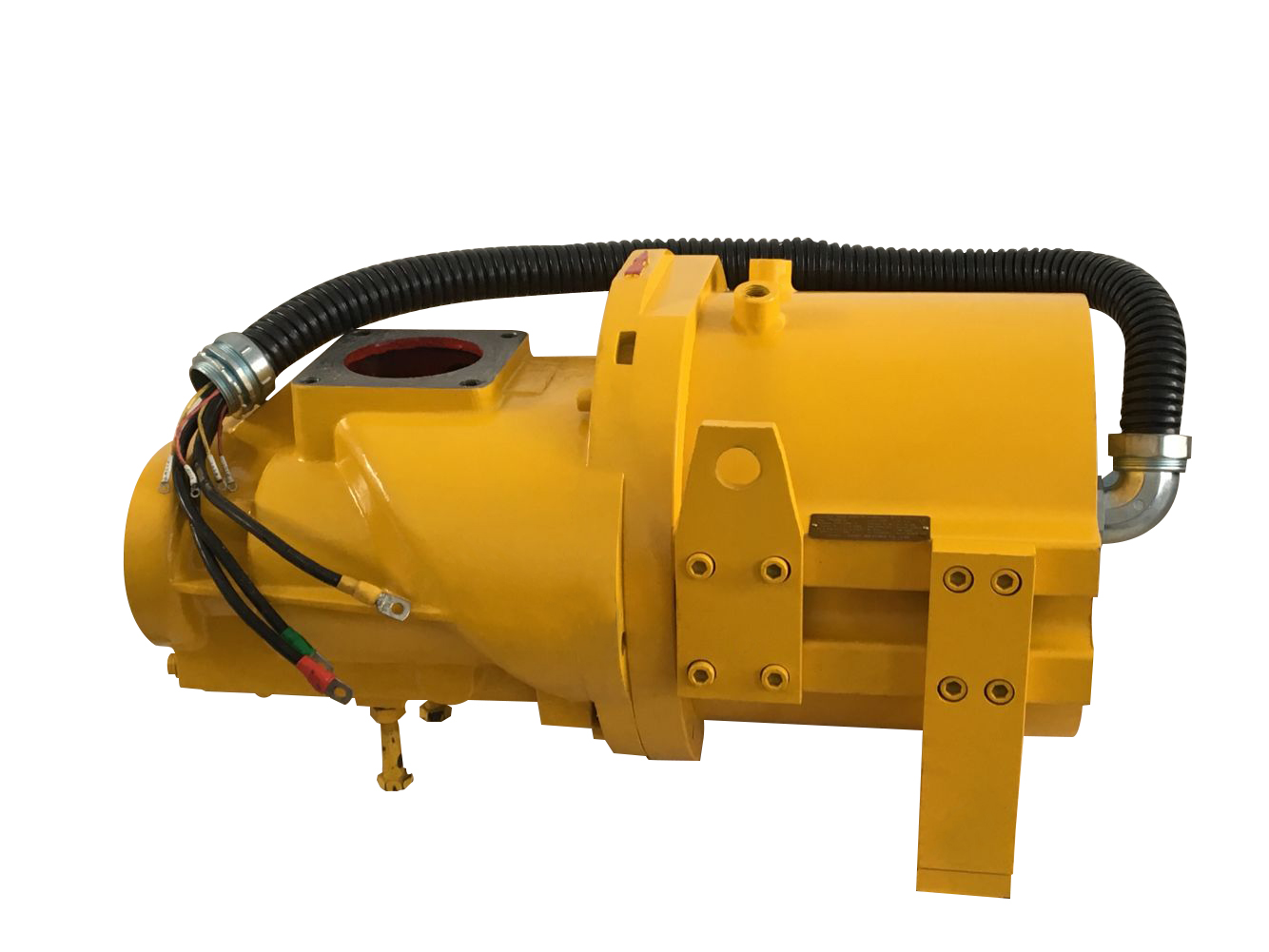

GTK交流永磁同步電機(液冷一體機）

機座號（Frame）: H112-H280mm

功率范圍（Power Range）:5.5KW-90KW

額定電壓（Rated voltage）: 380V

安裝方式（Installation mode）:B3

絕緣等級（Class of insulation）: F

防護等級（Protection grade）: IP54

效率等級（Efficiency)：2級

特點說明：一體機是把超高效永磁同步電機和螺桿空壓機軸向連接在一起，減小空間、大大地增加電機的效率。電機采用了超高內稟矯頑力、耐高溫稀土永磁材料，抗弱磁能力強，幾乎在整個轉速范圍可以恒轉矩輸出。正弦波磁場設計，低速轉矩平穩，過載能力強，使用安全可靠。采用獨立的液冷（水冷、油冷）冷卻系統，不但散熱效果好，而且大大的提高電機功率密度、減小電機的體積。

Characteristics：

All-in-one machine is connected ultra high efficiency permanent magnet synchronous motor with screw air compressor, reducing the space, greatly increasing the efficiency of the motor. Adopted ultra high intrinsic coercivity, high temperature resistant rare earth permanent magnetic materials, it has a strong ability to anti weak magnetic, can almost be constant torque output in the whole speed range, with sine wave magnetic field design, smooth low speed torque, strong overload capacity, safe and reliable performance. Using independent liquid cooling (water cooling, oil cooling) system, not only the heat dissipation is excellent, but also greatly increasing the power density and reducing the volume of the motor.
