張力電機 大理石切割機專用電機

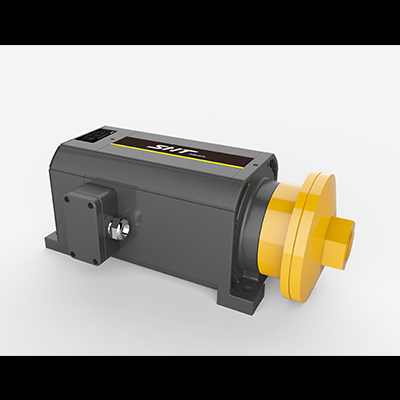

GS 大理石切割機專用異步電機

GSZ Special asynchronous motor for marble cutting machine

額定電壓（Rated voltage）: 380V

功率范圍（Power Range）: 5.5KW-30KW

安裝方式（Installation Mode）: B3/B5/B35

絕緣等級（Class of Insulation）: F

防護等級（Protection Grade）: IP65

效率等級（Efficiency)：1級

特點說明：

是專為大理石五軸加工中心而自主研發、設計的一款高效永磁同步電機，獨特的設計具有萬向切割、雕刻一體化設計，最高轉速4500轉/分鐘，防護等級IP65。電機采用了超高內稟矯頑力、耐高溫稀土永磁材料，抗弱磁能力強，幾乎在整個轉速范圍可以恒轉矩輸出。正弦波磁場設計，低速轉矩平穩，過載能力強，使用安全可靠。

Characteristics：

The motor is a high efficient PMSM, specially developed for 5-axles marble machining center with integrated universal cutting and sculpture. The motor has max. speed of 4500RPM and IP65 protection. The motors take use of high intrinsic coercive force, high temperature rare earth permanent magnetic material with strong resistance to weak magnetism, and have constant output torque in whole speed range as well as smooth torque at low speed and high overload capacity by taking sinusoidal magnetic field design, and high overload capacity for safe and reliable running.
